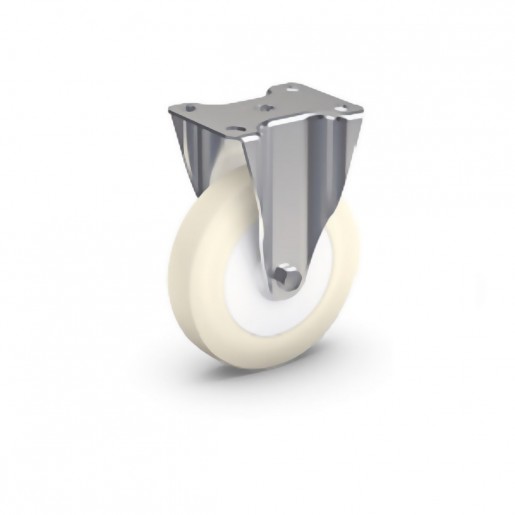

68 F PU NI/050/18/1/P Stainless Steel Fixed Castor

SKU:
RV4939000100
OE Part No:
-
Article No:
4939000100

Stainless steel institutional fixed castor

Notify me when available
Description

Stainless steel institutional fixed castors with PEVOTHAN® wheels series 85 PU with plain bearing. PEVOTHAN® is a high-quality thermoplastic polyurethane elastomer ideally suited for wheels and castors. Particularly notable are its high load ca­pacity, high abrasion resistance, low starting and rolling resistance and its excellent damping properties. In addition, PEVOTHAN° is non-marking and non-staining.

We manufacture PEVOTHAN wheels in Shore hardness 80°, 86° and 95° Shore A. The temperature resistance of PEVOTHAN® is between -20 °C and +100 °C (-4 °F and 212 °F) (+80 °C/176 °F in continuous opera­tion).

PEVOTHAN wheels are superior to all rubber wheels, thanks to their much higher abrasion resistance, hygiene, chemical and thermal resistance and load capacity. Their good damping capacity enables silent running and floor-saving transport. This is particularly important for notch-sensi­tive floors such as tiles.

PEVOTHAN is also available in an electrically conductive version (PEVOTHAW-ELF).

Product Details
RV4939000100

Data sheet

Article No
4939000100
OE Part No
-
Type of Castors
Fixed
Load Capacity
40 kg
Wheel Diameter
50 mm
Tread Width
18 mm
No. of Bore Holes
4
Bore Hole Diameter
6.2 mm
Tread
Pevothan
Shore Hardness
80 sHA
Top Plate
55.0 x 55.0 mm
Bolt Holes Position
46 x 46/38 x 38 mm
Pivot Radius
-
Housing
Stainless Steel
Overall Height
71 mm
Weight
0.28 kg
