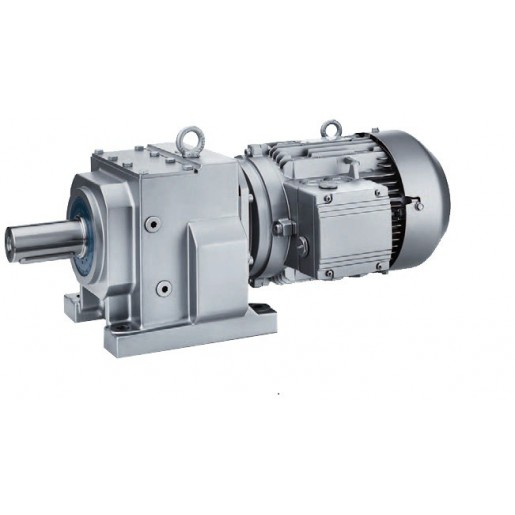

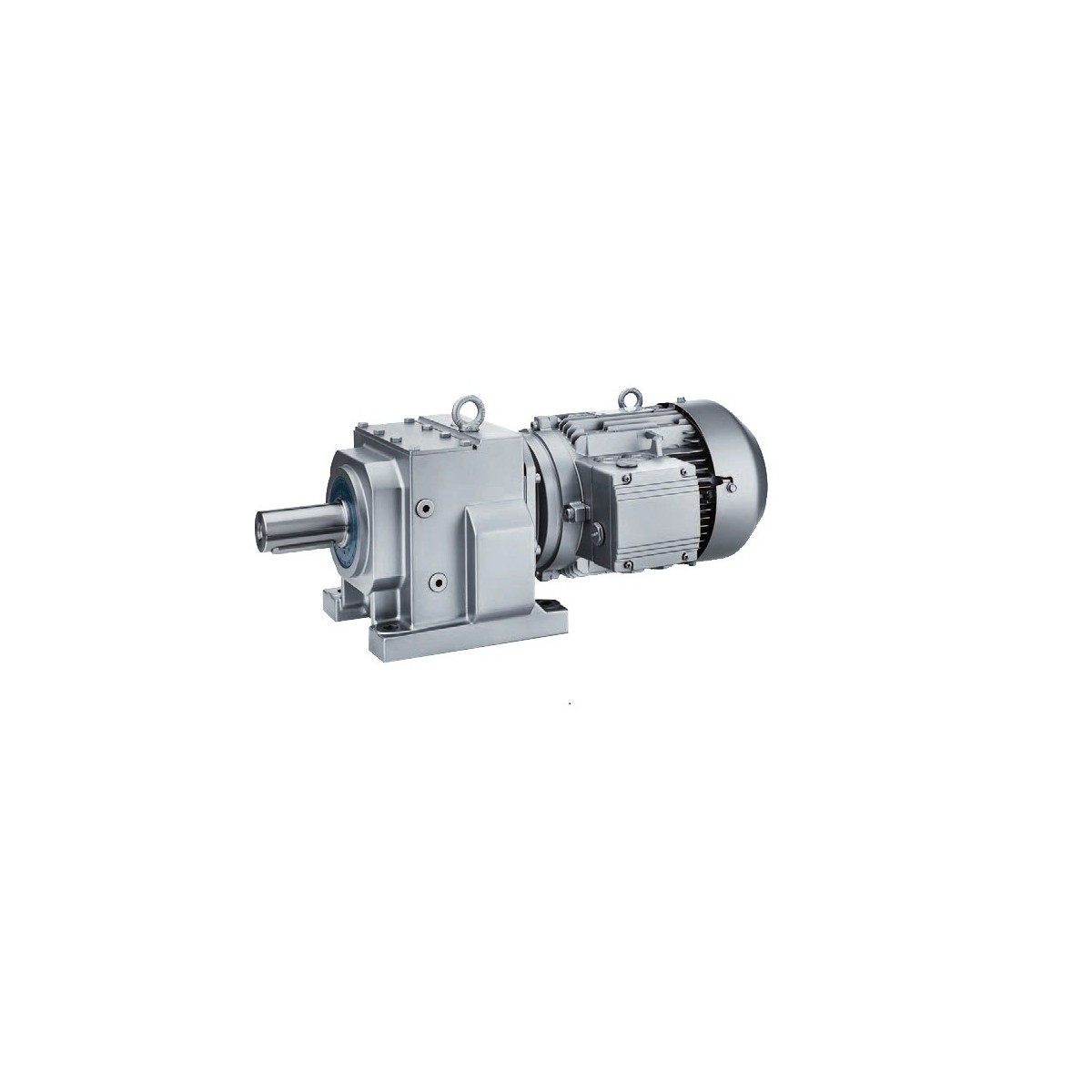

Motox Helical Geared Motor

Steinlen MOTOX helical gearboxes are part of the MOTOX modular system. The gearbox housings made of gray cast iron or aluminium are developed in 3D CAD and have an optimized structure in terms of rigidity and vibration absorption. Radial shaft seals with dust-protection lips prevent oil from leaking out of the housing, dust and water from entering it. All the gear wheels are milled and their surfaces hardened. The tooth flanks are ground or honed so that they are convex and corrected in terms of the profile.MOTOX helical gearboxes are of 1-stage, 2-stage and 3-stage design. The MOTOX helical gearbox series can be supplied in foot-mounted or flange-mounted design for mounting in any po-sition. Flange housings can be supplied with an integrated hous-ing flange (C type).
