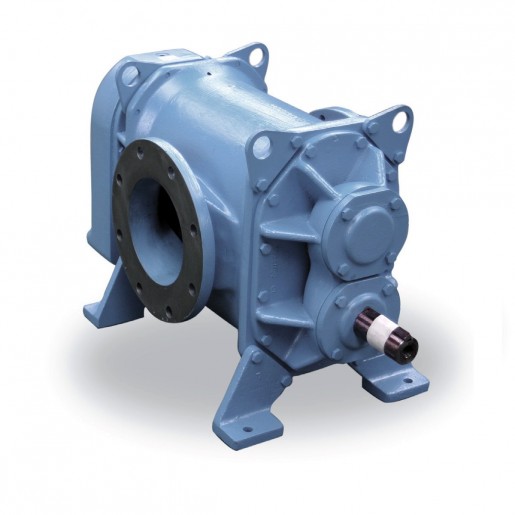

HR Size 3 Holmes Roots Air Blowers

SKU:
OE Part No:

Holmes, Dresser Holmes HR31, HR32, HR33,

Description

HR Blowers are one of the world’s leading air blower manufacturers and have a reputation for quality, innovation and service. The HR range of Roots type positive displacement blowers are manufactured in seven frame sizes with capacity ranging from 127 to 37,200 m3/hr and pressures from 0 to 1000 mBarG.The HR range is aimed predominantly at industrial, agricultural, transport and water treatment applications such as aeration, agitation, pneumatic conveying, fluidisation and blending processes.The HR range of bi-lobe positive displacement Roots type blowers are Globally renowned for high performance, efficiency, reliability and long product life cycle.The HR range can be offered with a range of specialized coatings on wetted parts to suit your application for example Armaloy or Nickel.

Product Details

Data sheet

OE Part No
Mounting
vertical/horizontal
Inlet/discharge
150 to 200 mm bore
Blower Type
HR 31,32,33
Capacity
792 to 4367 m3/h
Pressure
300 to 1000 mbar
Discharge
left/right and top/bottom
Shaft
50 mm
Weight
236 kg to 306 kg
