HR Blowers
Holmes, Dresser Holmes HR71, HR72, HR73,

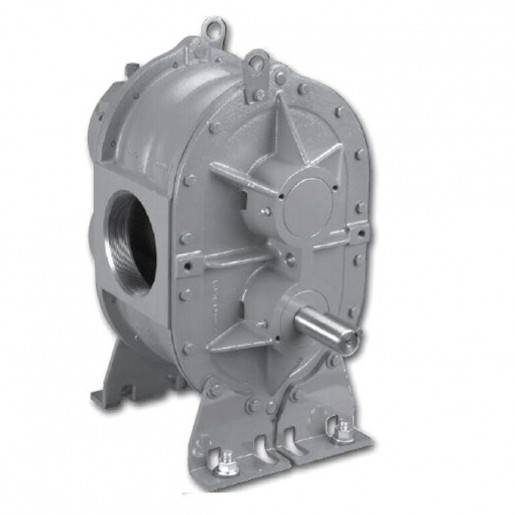

URAI 22M Roots positive displacement blower
SKU:
651020M0
OE Part No:
Article No:
651020M0
URAI 22M Bare shaft blower
Universal RAI©blowers are heavy duty rotary blowers designed with detachable rugged steel mounting feet, which permit easy infield adaptability to either vertical or horizontal installation requirements. Universal RAI blowers can even be hung from overhead supports. Installation costs can be reduced by the versatility of mounting arrangements. Self-contained packaged units are also available.
651020M0
Data sheet
- Article No
- 651020M0
- OE Part No
- –
- Mounting
- vertical/horizontal
- Inlet/discharge
- 1” BSP/ISO
- Blower Type
- 22 M
- Capacity
- up to 1.5 m3/h
- Pressure
- up to 0.8 bar
- Discharge
- left/right and top/bottom
- Shaft
- 16 j6
- Weight
- 15.0 kg
