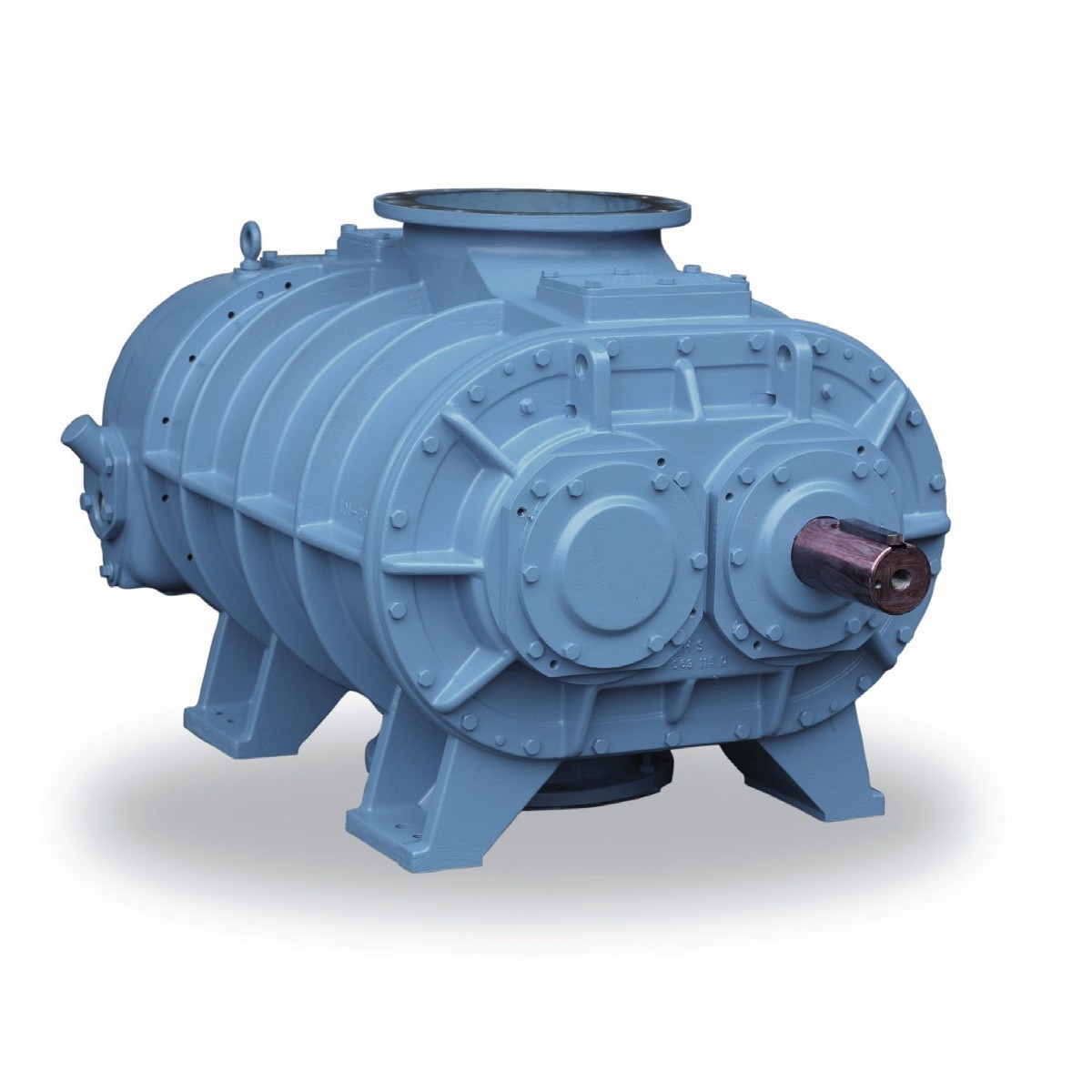

HR Size 5 Holmes Roots Air Blowers

SKU:
OE Part No:

Holmes, Dresser Holmes HR51, HR52, HR53,

Description

HR Blowers are one of the world’s leading air blower manufacturers and have a reputation for quality, innovation and service. The HR range of Roots type positive displacement blowers are manufactured in seven frame sizes with capacity ranging from 127 to 37,200 m3/hr and pressures from 0 to 1000 mBarG.The HR range is aimed predominantly at industrial, agricultural, transport and water treatment applications such as aeration, agitation, pneumatic conveying, fluidisation and blending processes.The HR range of bi-lobe positive displacement Roots type blowers are Globally renowned for high performance, efficiency, reliability and long product life cycle.The HR range can be offered with a range of specialized coatings on wetted parts to suit your application for example Armaloy or Nickel.

Product Details

Data sheet

OE Part No
Mounting
horizontal
Inlet/discharge
300, 350, 400 mm bore
Blower Type
HR 51,52,53
Capacity
1973 to 13306 m3/h
Pressure
300 to 1000 mbar
Discharge
top/bottom
Shaft
90 mm
Weight
900 kg to 1570 kg
