Raeder-Vogel
SKU RV5710431802
Suitable for Linde 0029903814

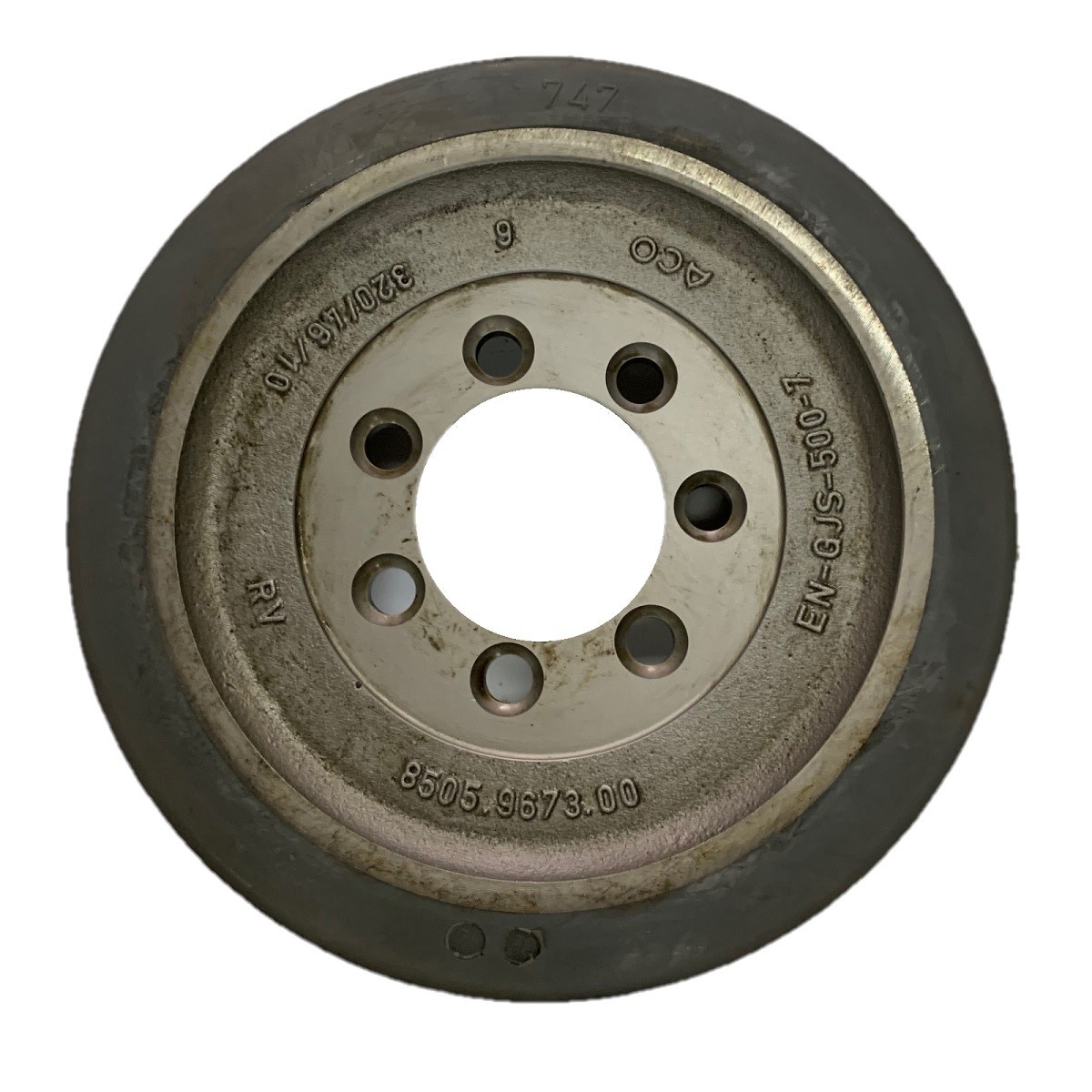

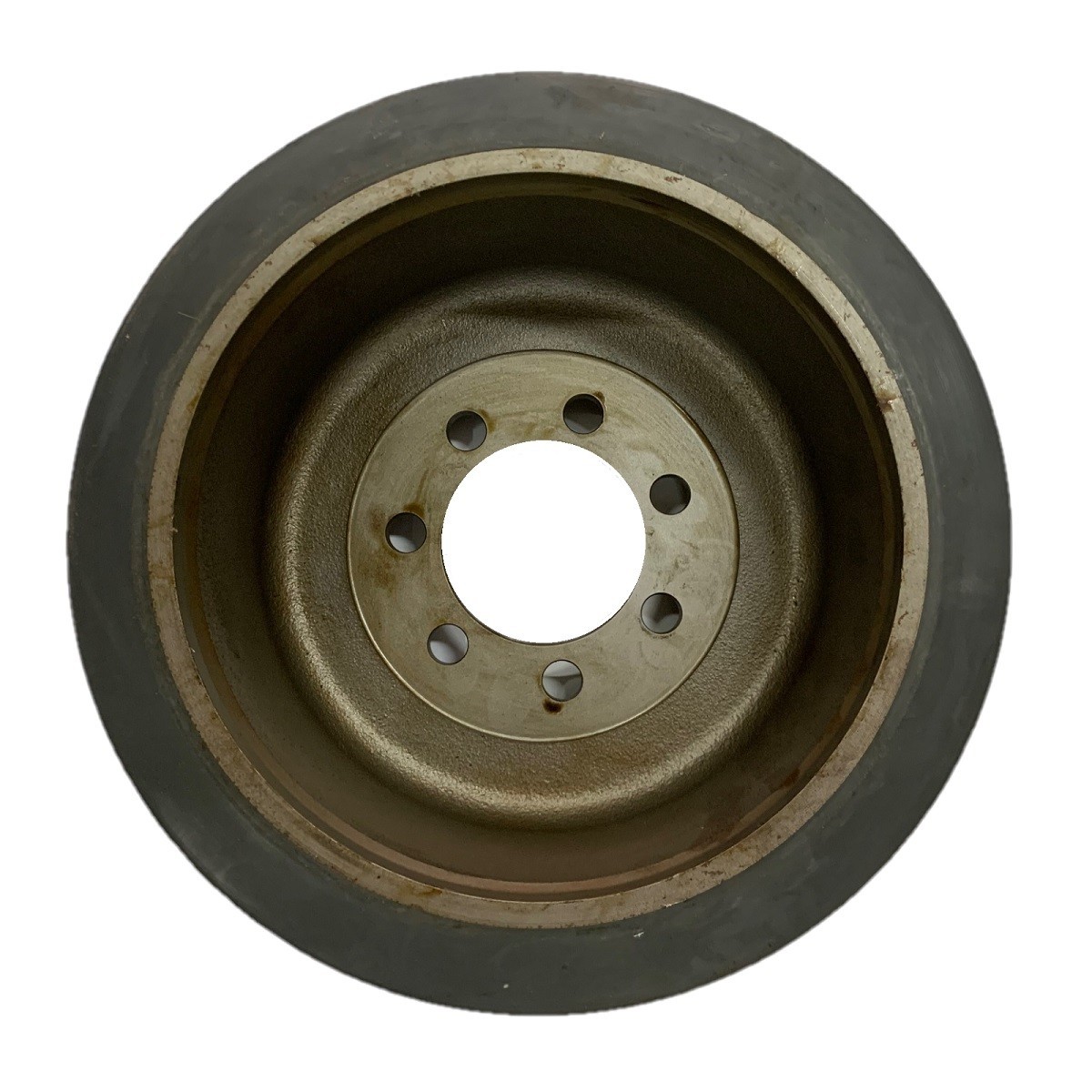

172 PD/310/120/250/080 H8 PEVODYN DRIVE WHEEL SUITABLE FOR BT 151991
SKU:
RV57184354602
OE Part No:
151991
Article No:
5718354602
Suitable for BT 151991
This drive wheel has a high-quality PEVODYN® polyurethane tread material especially suited for tropical conditions with high humidity. The tread is strongly bonded with special RV compound to the steel rim giving it a superior bonding strength. The tread is also non-marking and offers high dynamic load capacity at high speed, mechanical wear and tear resistance and low compression. Resistant to many chemicals and oils, and with low water absorption makes this wheel ideal for most material handling applications.
RV57184354602

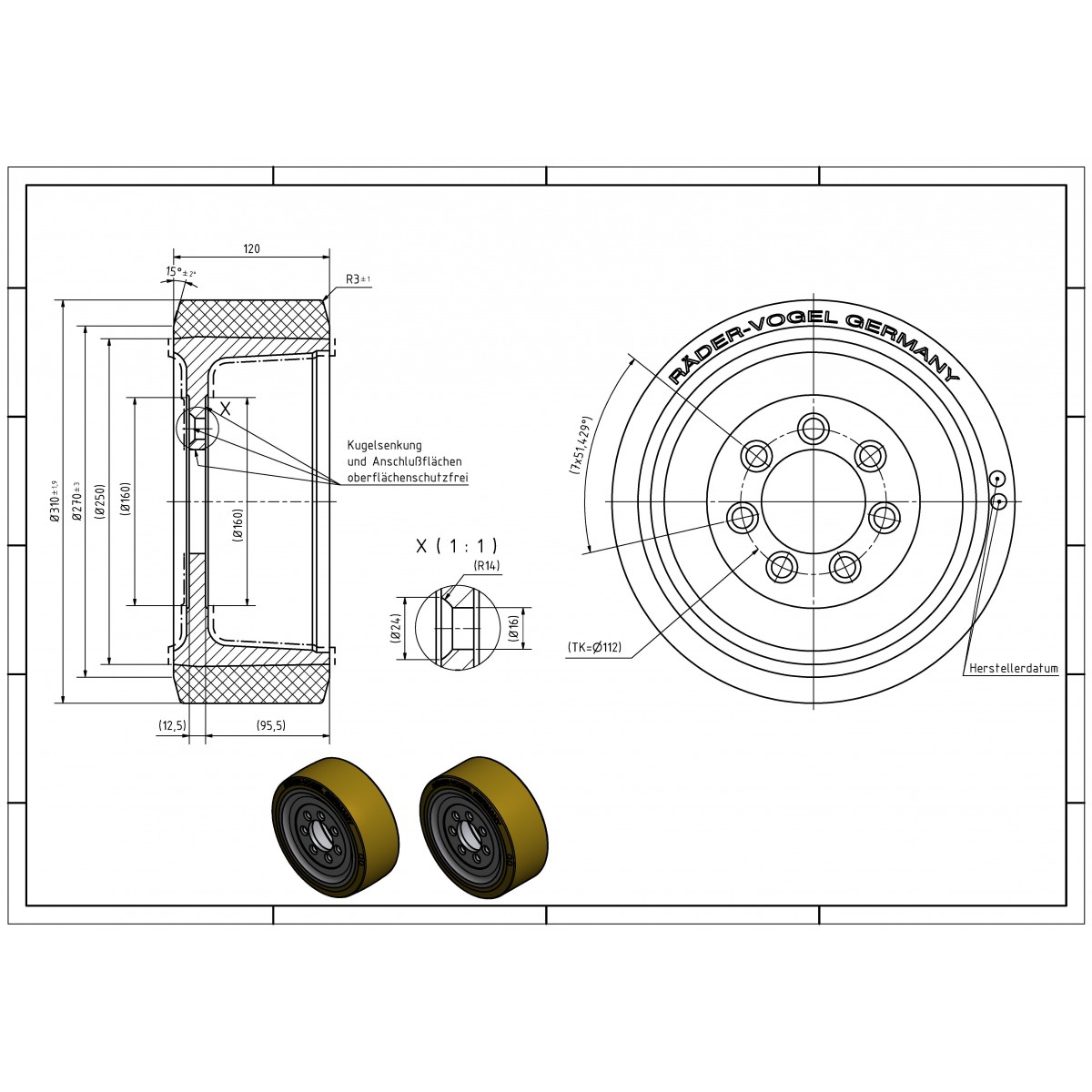

Data sheet
- Truck Manufacturer
- BT Toyota
- Truck Model
- RRM12, RRM12C, RRM14, RRM14C, 7FBRE12, 7FBRE16, RB1
- Article No
- 5718354602
- OE Part No
- 151991
- Type of Wheel
- Drive Wheel
- Load Capacity
- 3260 kg
- Wheel Diameter
- 310mm
- Wheel Width
- 120 mm
- Tread Width
- 120 mm
- Centre Bore
- 80 mm
- No. of Bore Holes
- 7
- Bore Hole Diameter
- 16 mm
- Pitch Circle Diameter (PCD) of Bore Hole
- 112 mm
- Tread
- Pevodyn
- Shore Hardness
- 93 sHA
- Weight
- 15.6 kg
