Raeder-Vogel
SKU RV5710431802
Suitable for Linde 0029903814

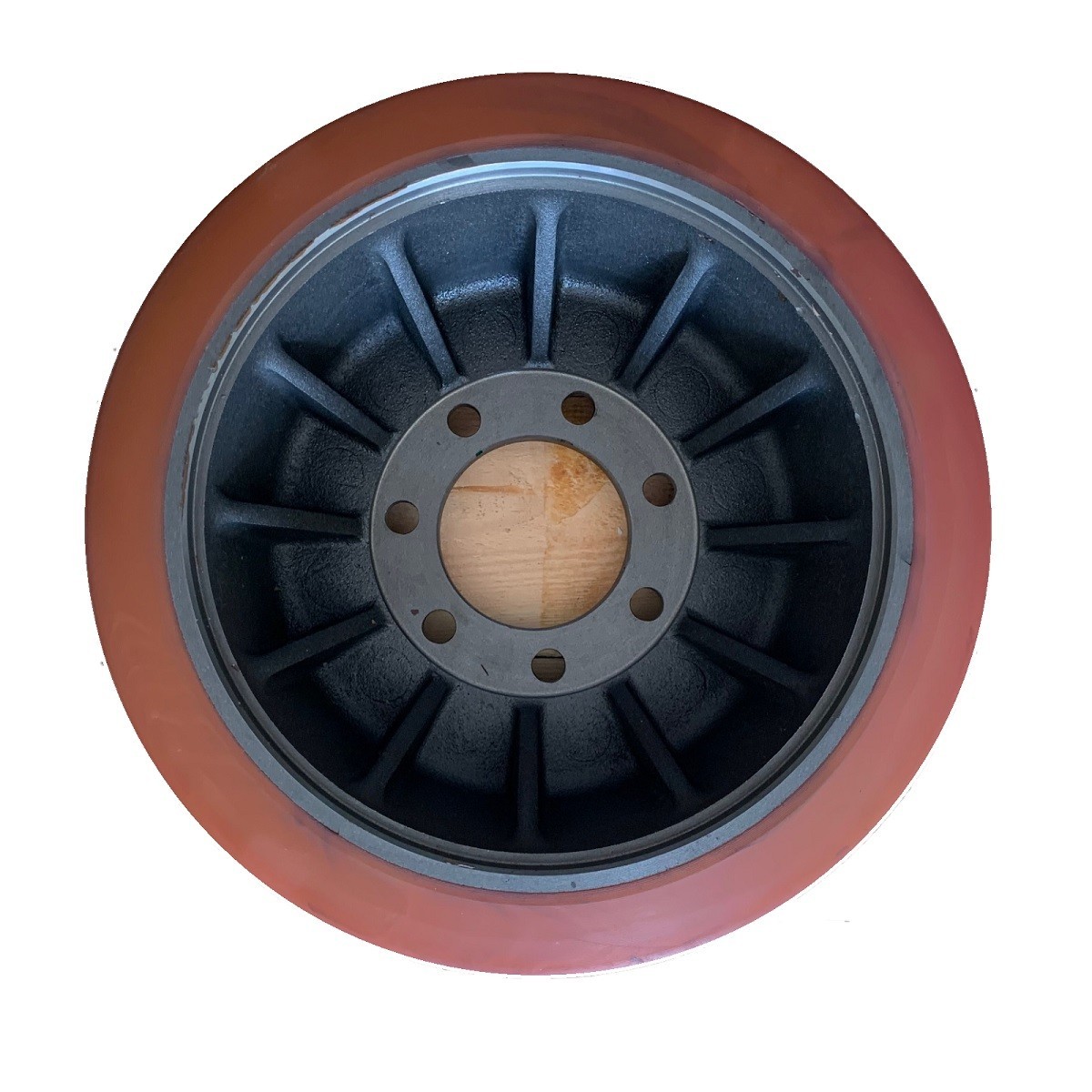

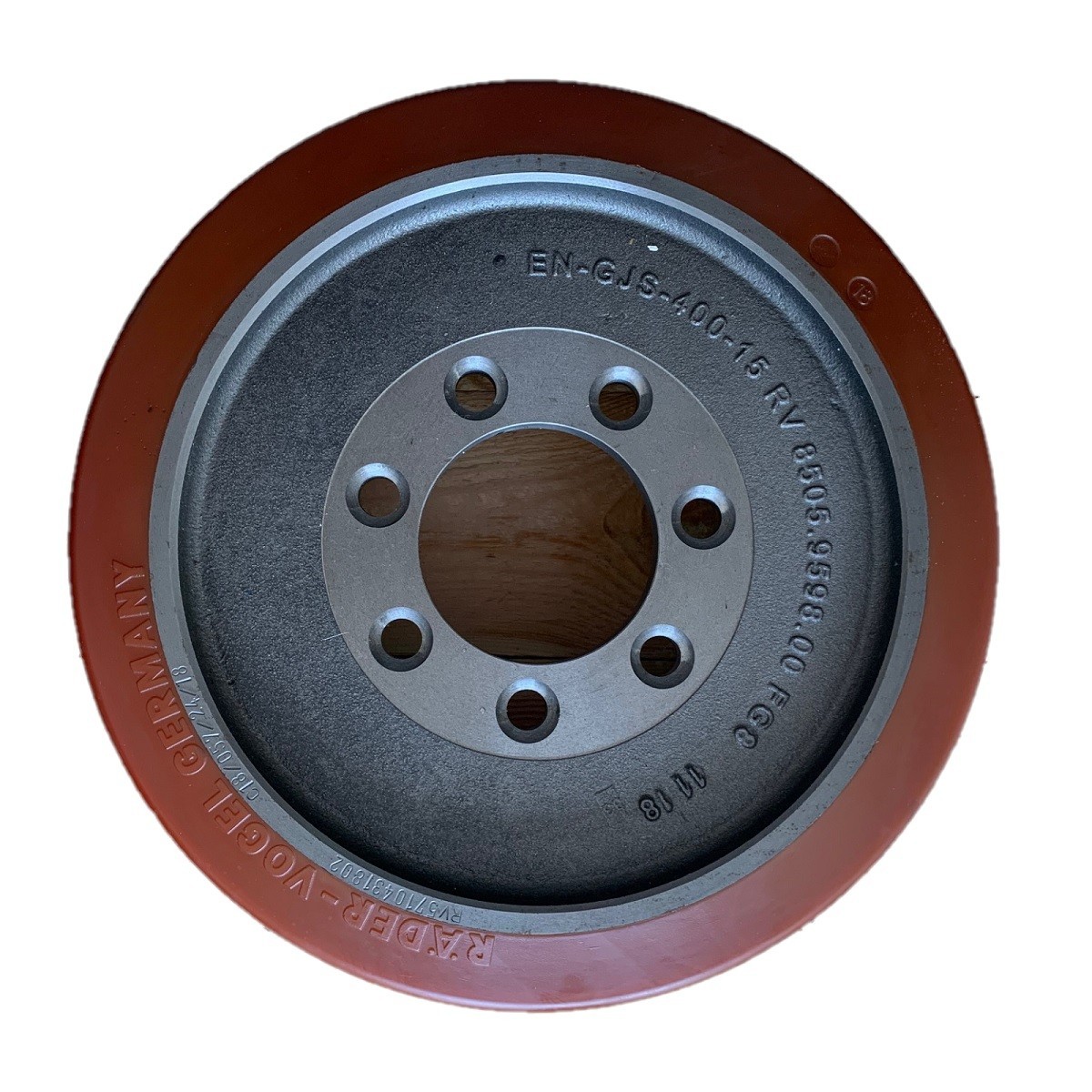

172/343/135/278/090 H7 VULKOLLAN® DRIVE WHEEL SUITABLE FOR LINDE 0029903814
SKU:
RV5710431802
OE Part No:
0029903814
Article No:
5710431802
Suitable for Linde 0029903814
This drive wheel has a high-quality VULKOLLAN® polyurethane tread material especially suited for tropical conditions with high humidity. The tread is strongly bonded with special RV compound to the steel rim giving it a superior bonding strength. The tread is also non-marking and offers high dynamic load capacity at high speed, mechanical wear and tear resistance and low compression. Resistant to many chemicals and oils, and with low water absorption makes this wheel ideal for most material handling applications.
RV5710431802

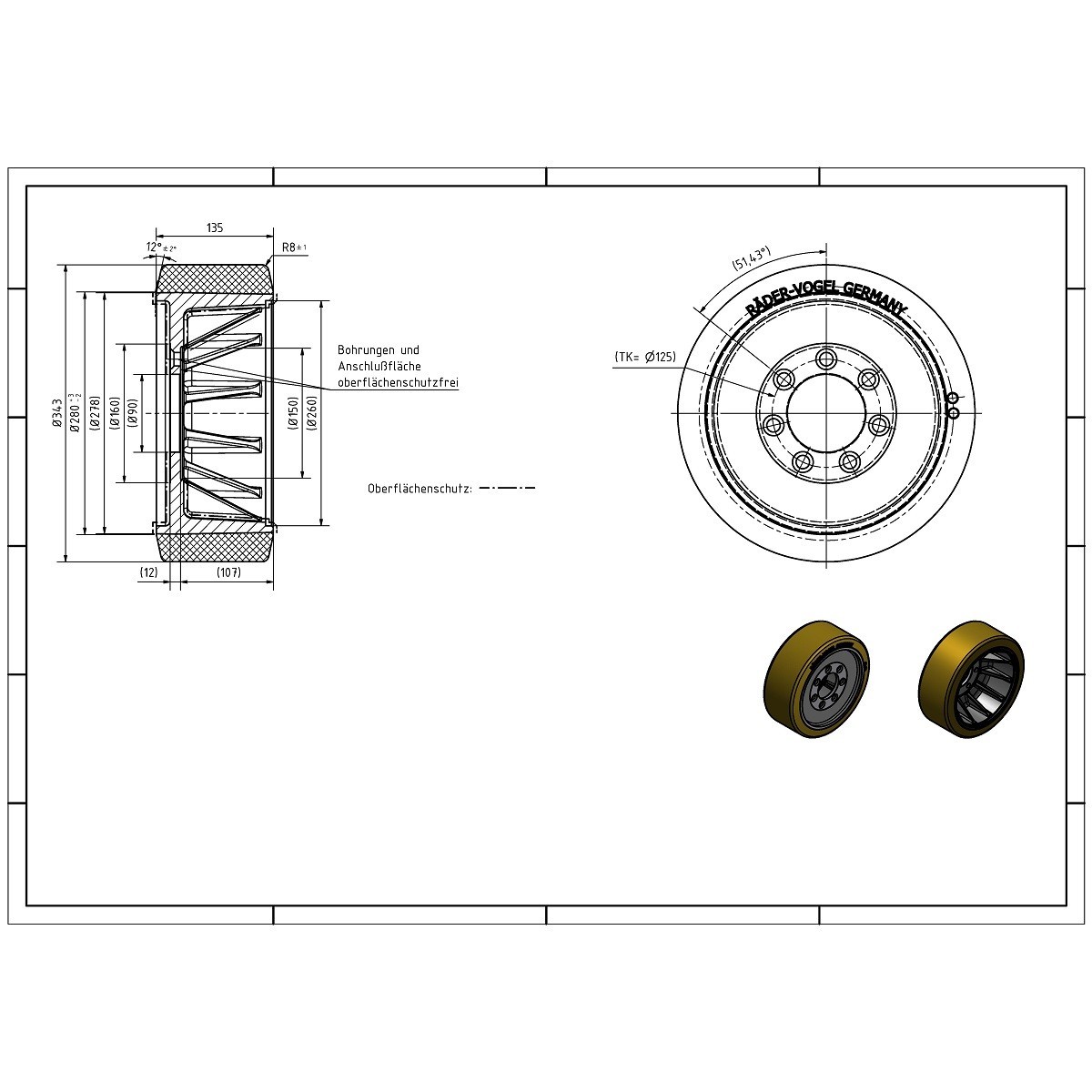

Data sheet
- Truck Manufacturer
- Linde
- Truck Model
- R14/R16 Serial 115 / R20S / RX-RT
- Article No
- 5710431802
- OE Part No
- 0029903814
- Type of Wheel
- Drive Wheel
- Load Capacity
- 4240 kg
- Wheel Diameter
- 343 mm
- Wheel Width
- 135 mm
- Tread Width
- 135 mm
- Centre Bore
- 90 mm
- No. of Bore Holes
- 7
- Bore Hole Diameter
- 15.5 mm
- Pitch Circle Diameter (PCD) of Bore Hole
- 125 mm
- Tread
- Vulkollan
- Shore Hardness
- 93 sHA
- Weight
- 23.00 kg
