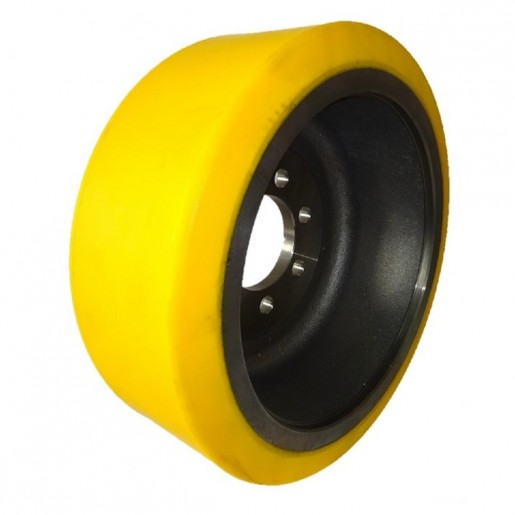

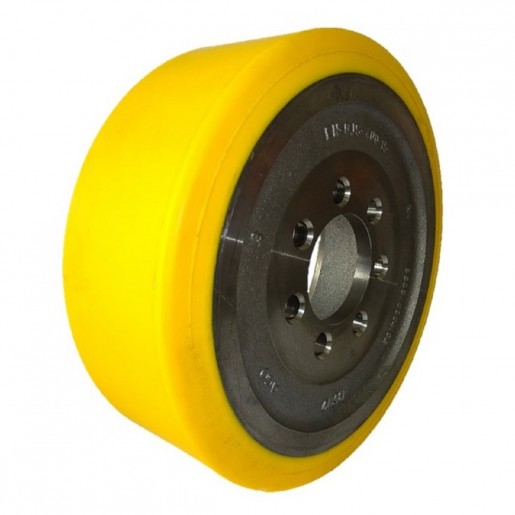

172 PD/360/130/300/090 H8 PEVODYN Drive Wheel Suitable for Still/Wagner

SKU:
RV5718491301
OE Part No:
428189
Article No:
5718491301

Drive Wheel suitable for Still/Wagner FS-X33, FM-X10, FM-X12, FM-X14, FM-X17

Notify me when available
Description

This drive wheel has a high-quality PEVODYN® polyurethane tread material especially suited for tropical conditions with high humidity. The tread is strongly bonded with special RV compound to the steel rim giving it a superior bonding strength. The tread is also non-marking and offers high dynamic load capacity at high speed, mechanical wear and tear resistance and low compression. Resistant to many chemicals and oils, and with low water absorption makes this wheel ideal for most material handling applications.

Product Details
RV5718491301

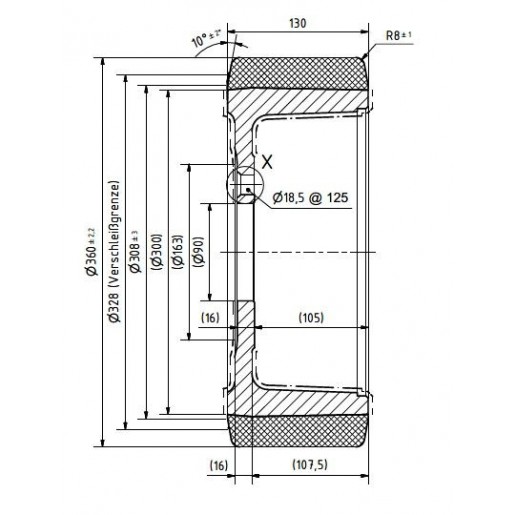

Data sheet

Truck Manufacturer
Still
Truck Model
FM-X10
FM-X12
FM-X14
FM-X17
FS-X33
Article No
5718491301
OE Part No
428189
Type of Wheel
Drive Wheel
Load Capacity
4290 kg
Wheel Diameter
360 mm
Wheel Width
130 mm
Tread Width
130 mm
Centre Bore
90 mm
No. of Bore Holes
7
Bore Hole Diameter
18.5 mm
Pitch Circle Diameter (PCD) of Bore Hole
125 mm
Hub Length
16 mm
Tread
Pevodyn
Shore Hardness
93 sHA
Net Weight Per Unit
28.2 kg
