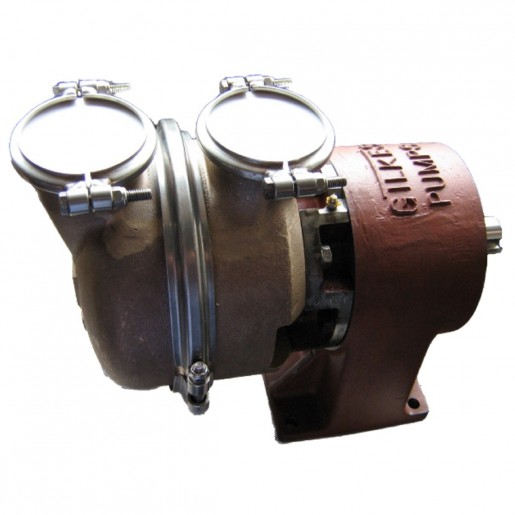

M Series 200/562 Liquid Ring Pump/Self Priming Suitable For Cummins

SKU:
GG44943-011
OE Part No:
3010328
Article No:
44943-011

Engine cooling pump basic without pedestal suitable for NT855, ISMCM875, ISMCM876, QSM11CM876, M11, M11CELECTPlus, ISMCM876E, M11CELECT, ISMCM870andCM570, ISM11CM876SN, QSM11CM570, ISMCM570

Description

LIQUID RING - SELF PRIMING

Applications

·      Marine Auxiliary Power & Power Generation, Marine and In-land vessels

Construction

·      Bronze / Stainless Steel
Function

·      Self Priming pump for block cooling
Features

·      Good low engine idle speed priming

·      Strong self priming lift capability

·      Engine or remote mounting options

·      Short period run dry capability

·      Aluminium Bronze impellers for durability

·      Self lubricating or engine lubricated bearings

·      Keel cooling pump options available

·      Raw water & fresh water compliant

·      Optimised mechanical & oil seal designs

Product Details
GG44943-011

Data sheet

Engine Manufacturer
Cummins
Engine Model
CM570
ISM11CM876SN
ISMCM570
ISMCM870
ISMCM875
ISMCM876
ISMCM876E
M11
M11CELECT
M11CELECTPLUS
NT 855
QSM11CM570
QSM11CM876
Article No
44943-011
OE Part No
3010328
Pump Series
M Series
Impeller Material
Bronze
Impeller Type
Chevron
Impeller Size
5.62"
Lubrication
Grease
Rotation
Right Hand
Port Size
2.0"
Weight
18 kg
