Gilkes
SKU 248-2858, 11R1280
Engine cooling pump suitable for 3508, 3508B, 3508C, 3512, 3512B, 3512C, 3516, 3516B,3516C

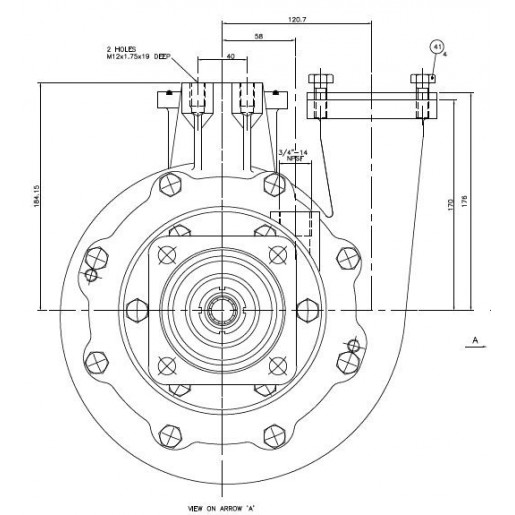

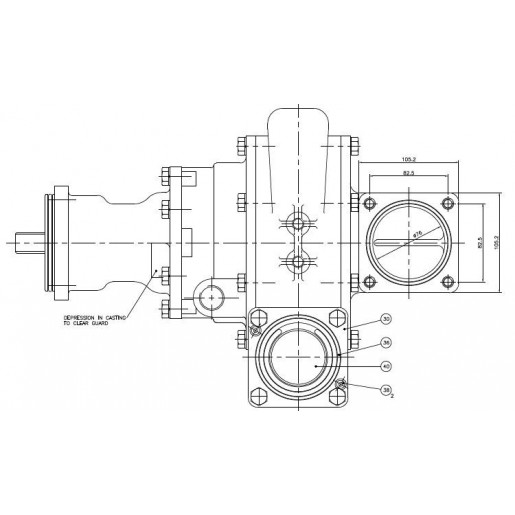

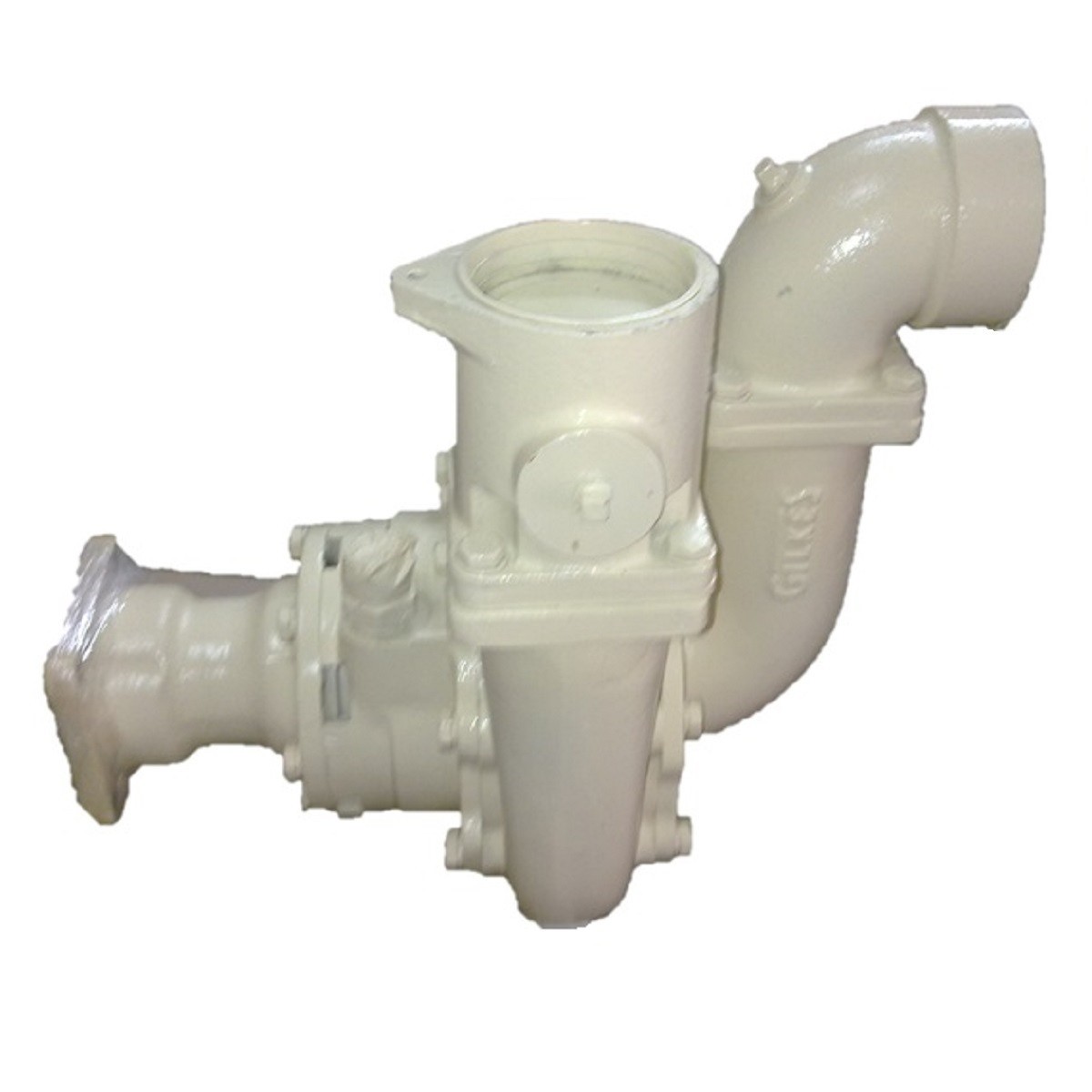

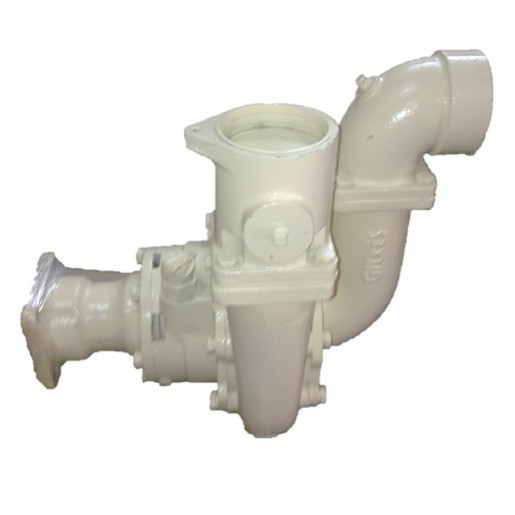

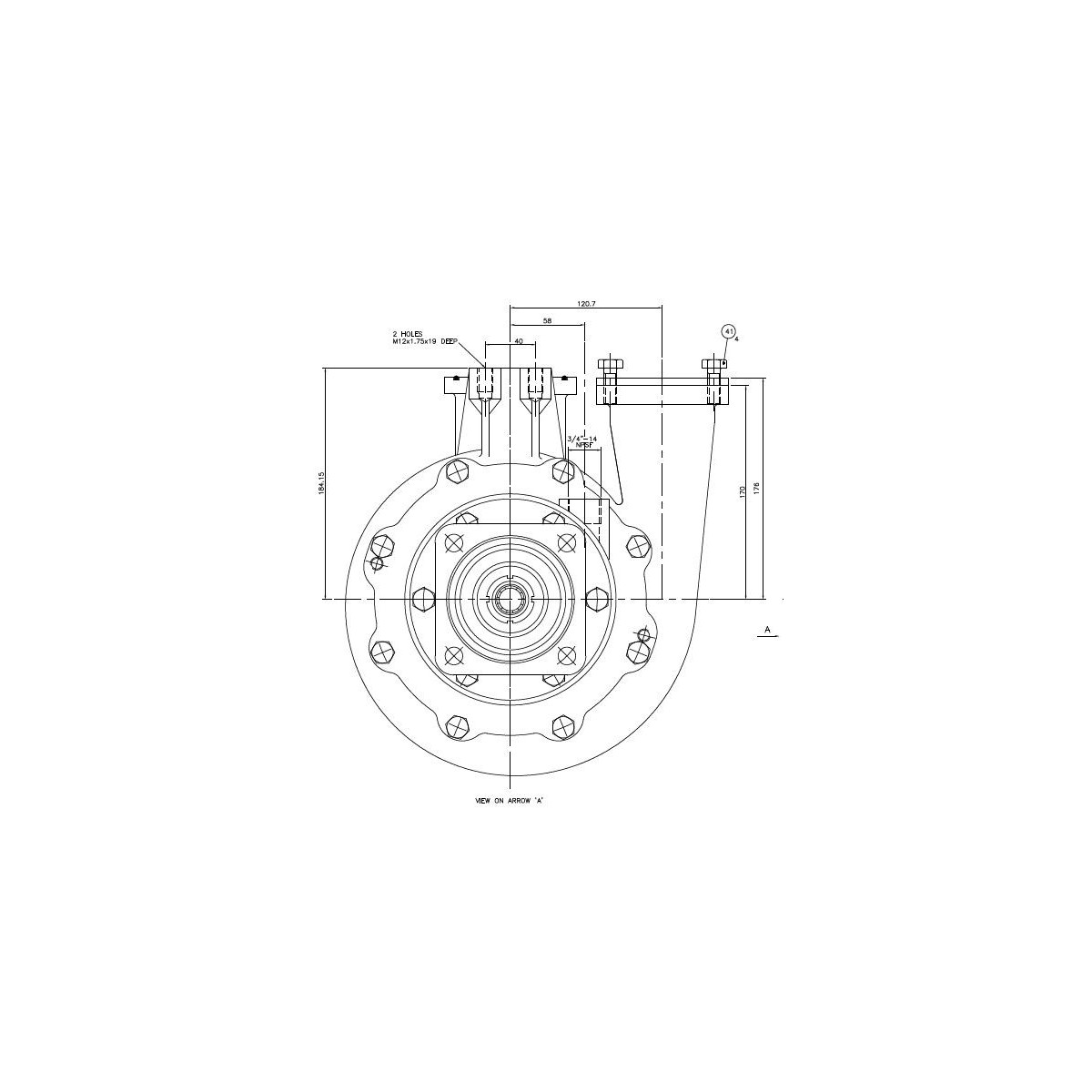

SPC 80-185 Liquid Ring Pump/Centrifugal Self Priming Suitable For Cummins
SKU:
GG121642
OE Part No:
4078936
Article No:
121642
Engine cooling pump suitable for Cummins G38, G50, K50, KT38, KTA38GC CM558
Applications
- Marine Auxiliary Power & Power Generation, Marine and In-land vessels
Construction
- Bronze / Stainless Steel
Function
- Self Priming pump for block cooling
Features
- Good low engine idle speed priming
- Strong self priming lift capability
- Increased duty options
- Short period run dry capability
- Aluminium Bronze impellers for durability
- Self lubricating or engine lubricated bearings
- Keel cooling pump options available
- Raw water & fresh water compliant
- Optimised mechanical & oil seal designs
GG121642
Data sheet
- Engine Manufacturer
- Cummins
- Engine Model
- G38
G50
K50
KT38
KTA38G CCM558
- Article No
- 121642
- OE Part No
- 4078936
- Pump Series
- SPC 80-185
- Impeller Material
- Bronze
- Impeller Type
- Chevron/Centrifugal
- Impeller Size
- 5.62"
- Lubrication
- Grease
- Rotation
- clockwise when view from front of engine
- Port Size
- 4 bolt ASA type flange with ¾” through hole
- Weight
- 48 kg
