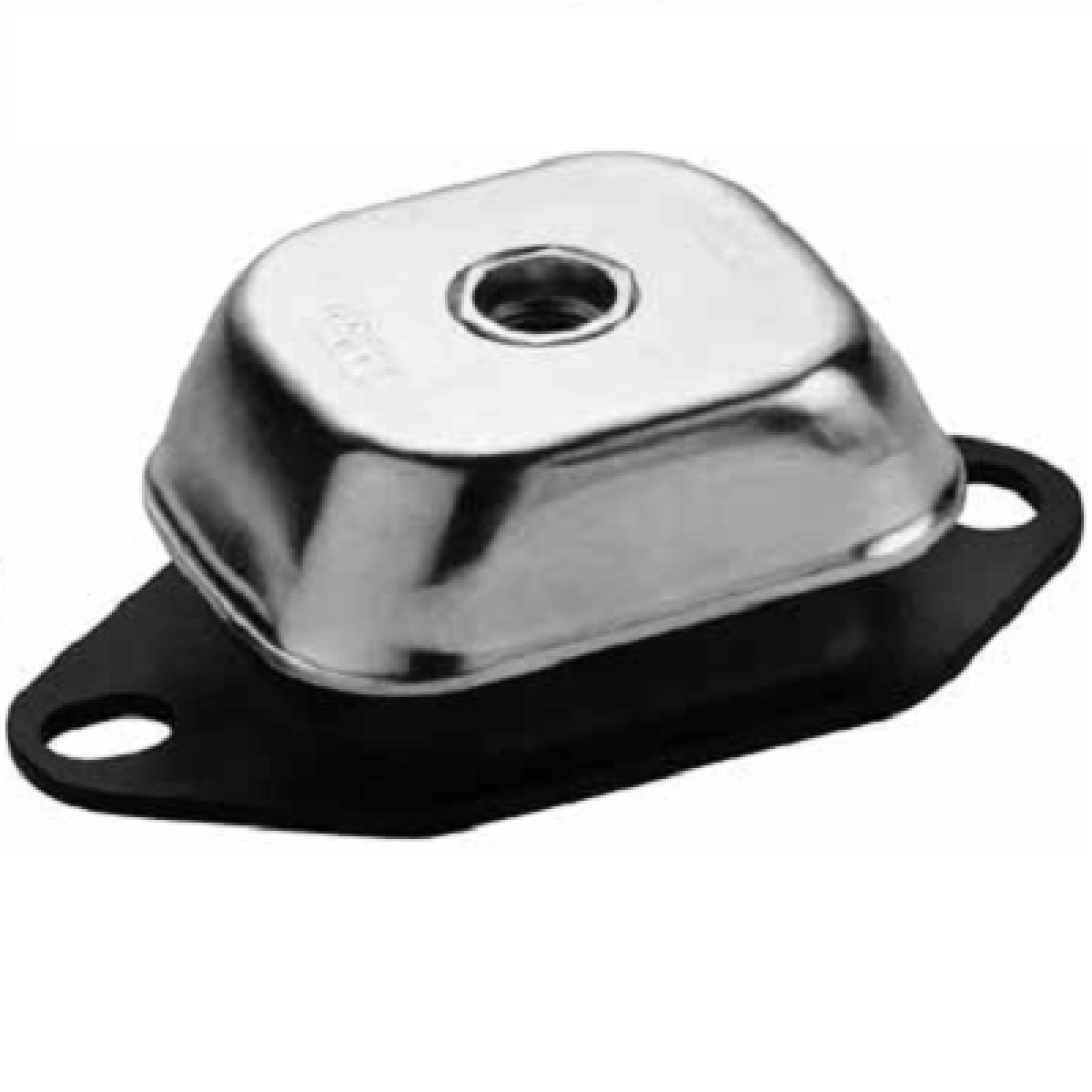

Triflex 2 Anti Vibration Mounts

SKU:
GM10002103
OE Part No:
Article No:
100021

Triflex 2 Mount

SGD 93.60
Description

The GMT TRIFLEX 2  Mount was developed for the insulation of static and mobile machines and engines. The compact bearing is easy to install and allows control of vibrations in three directions. The special design of TRIFLEX guarantees different degrees of stiffness in the three main axes, high spring deflection, carrying power and a long-lasting mount.

Product Details
GM10002103

Data sheet

Article No
100021
Shore Hardness
55 sHA
Overall Length
184 mm
Overall Width
190.0 mm
Overall Height
50 mm
Hole Position
140 mm
Hole Size
13.0 mm
Threaded Bolt
M16
Load Fv
4.0 kN
Weight
0.88 kg
Cross Reference
TRIFLEX-MTG1087
