Triflex 2 Anti Vibration Mounts

SKU:
GM10002104
OE Part No:
Article No:
100021

Triflex 2 Mount

SGD 93.60
Description

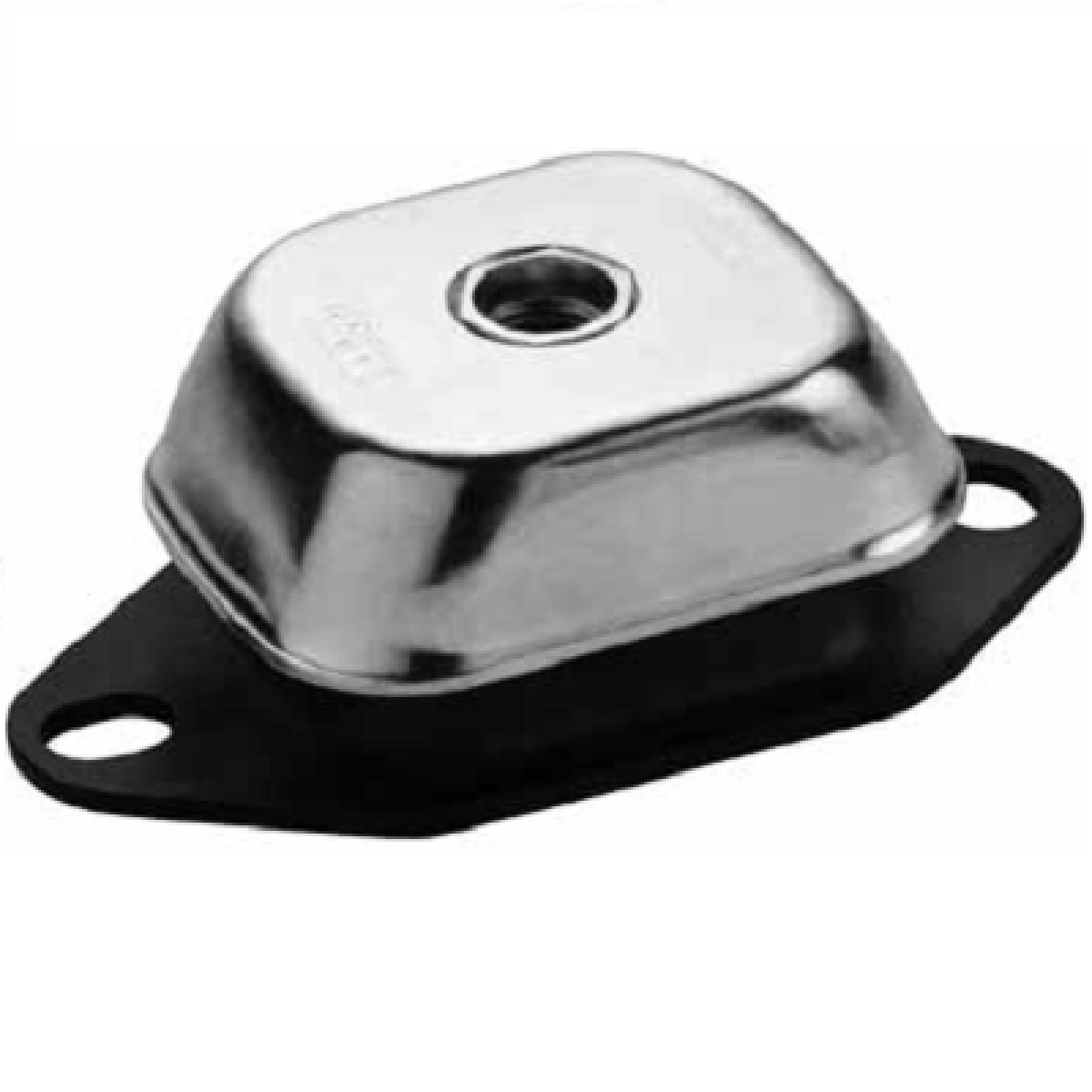

The GMT TRIFLEX 2  Mount was developed for the insulation of static and mobile machines and engines. The compact bearing is easy to install and allows control of vibrations in three directions. The special design of TRIFLEX guarantees different degrees of stiffness in the three main axes, high spring deflection, carrying power and a long-lasting mount.

Product Details
GM10002104

Data sheet

Article No
100021
Shore Hardness
65 sHA

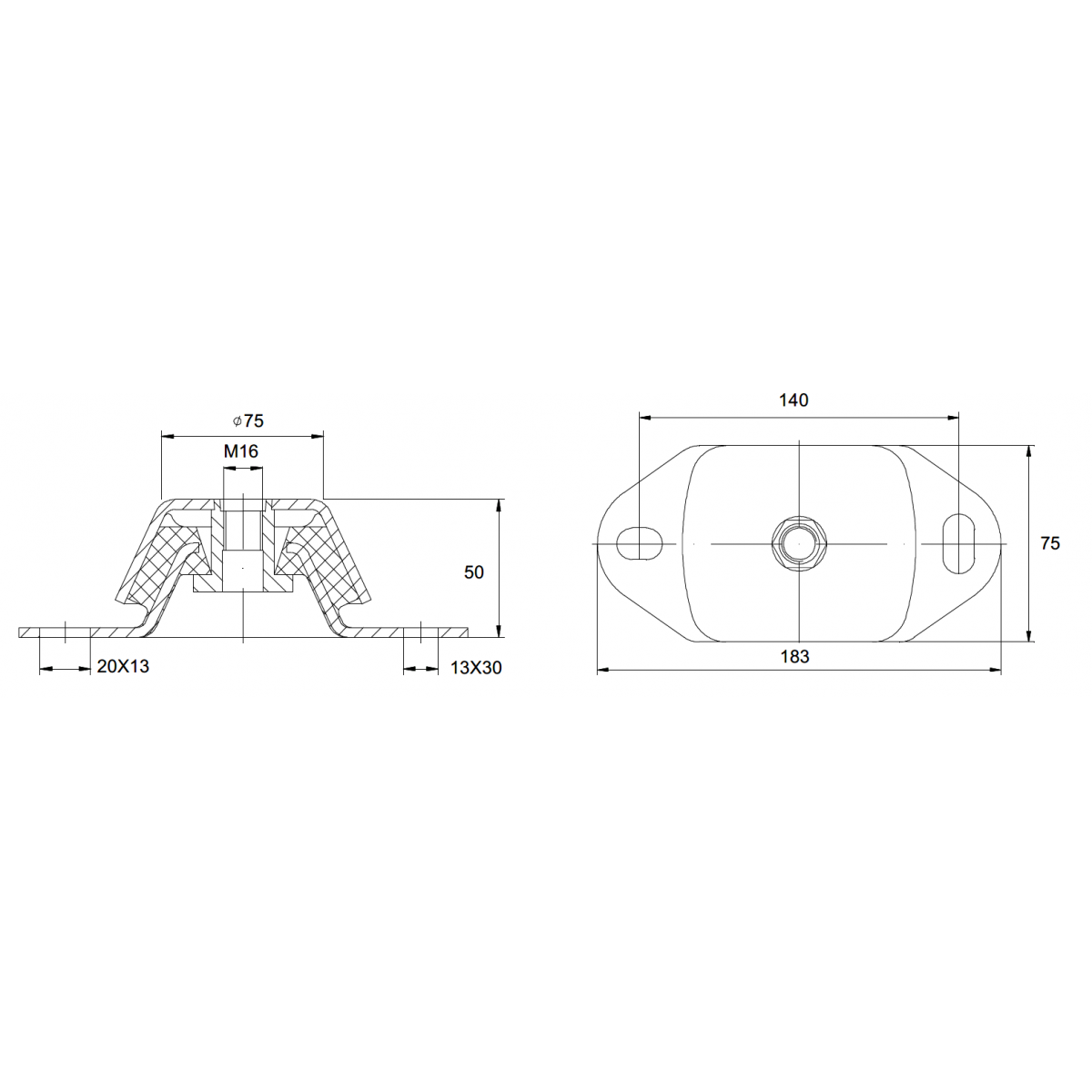

Overall Length
184 mm
Overall Width
75 mm
Overall Height
50 mm
Hole Position
140 mm
Hole Size
13.0 mm
Threaded Bolt
M16

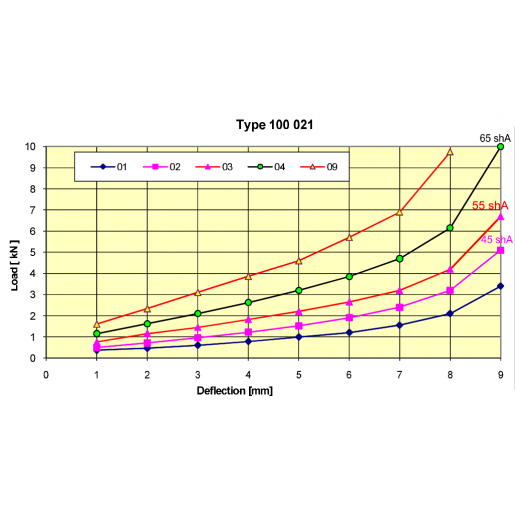

Load Fv
6 kN
Weight
0.88 kg
Cross Reference
TRIFLEX-MTG1087
