Machine Mount

SKU:
GM10000202
OE Part No:
Article No:
100002

Machine Mount

SGD 56.00
Description

Machine feet are the preferred choice when it comes to the vibration and sound insulated bedding for engines, blasts, tool machine, printing and textile machinery. They have a favorable thrust-spring-constant/pressure-spring-constant ratio. Because of the higher degree of horizontal stiffness their mechanical movements can be largely compensated.  All these products are maintenance-free. The manufacturing of these machine feet is done on the basis of natural rubber.

Product Details
GM10000202

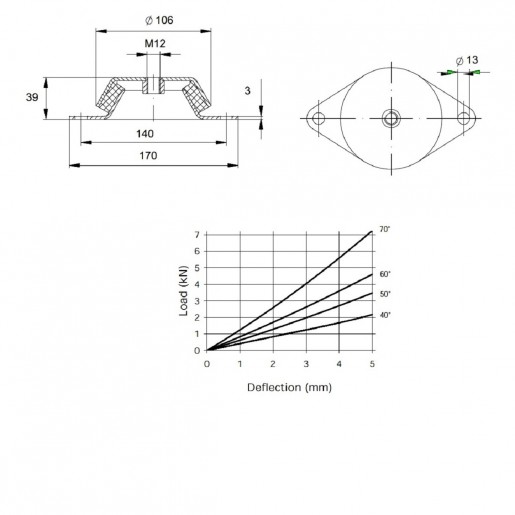

Data sheet

Article No
100002
Shore Hardness
60 sHA
Overall Length
170 mm
Overall Width
106 mm
Overall Height
39 mm
Hole Position
140 mm
Hole Size
13.0 mm
Threaded Bolt
M12
Load Fv
3.5 kN
Weight
0.7 kg
Cross Reference
M/C-MF1890
