GMT
SKU GMHD150070M20
High Deflection Fail Safe Anti Vibration Mount
Special Triflex Anti Vibration Mounts
SKU:
GM10401802
OE Part No:
0022377412
Article No:
104018

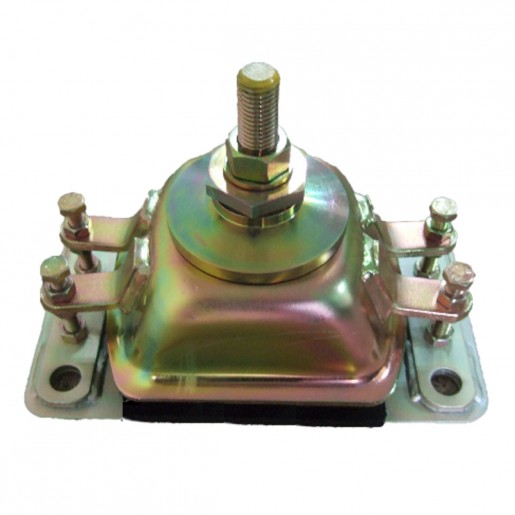

Special Triflex Mount
The GMT Special TRIFLEX Mount was developed for the insulation of static and mobile machines and engines. The compact bearing is easy to install and allows control of vibrations in three directions. The special design of TRIFLEX guarantees different degrees of stiffness in the three main axes, high spring deflection, carrying power and a long-lasting mount.
GM10401802
Data sheet
- Article No
- 104018
- OE Part No
- 002 237 73 12
- Shore Hardness
- 60 sHA
- Overall Length
- 300.0 mm
- Overall Width
- 190.0 mm
- Overall Height
- 219.0 mm
- Hole Position
- 270 x 135 mm
- Hole Size
- 22.0 mm
- Threaded Bolt
- M24
- Load Fv
- 11.8 kN
- Weight
- 10.5 kg
